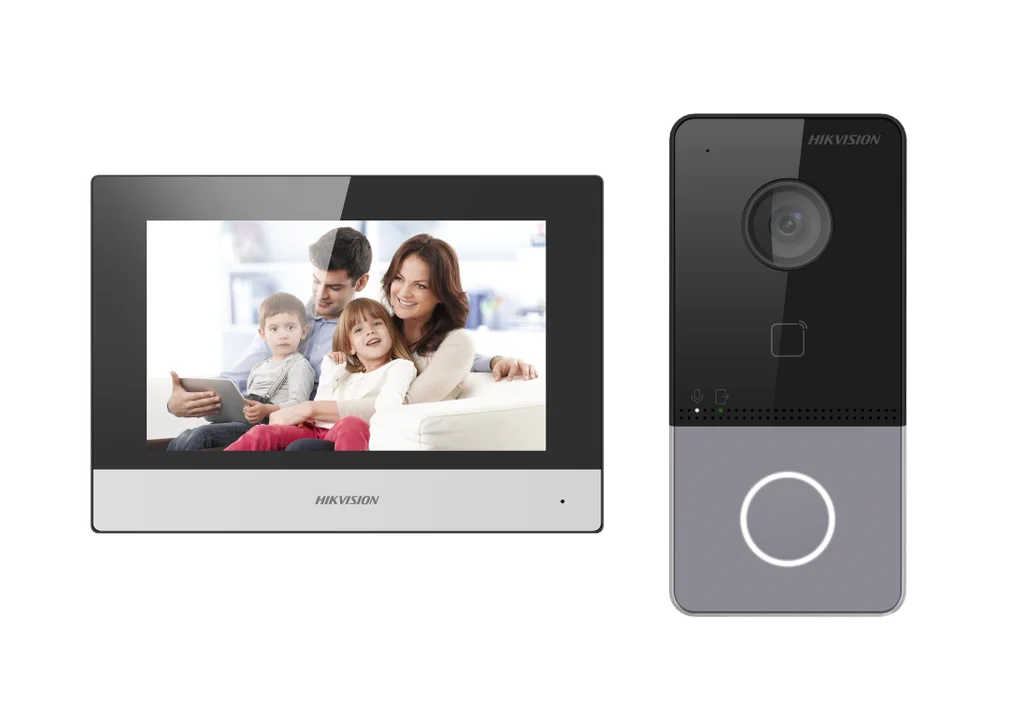

DS-KD8003-IME1

System Parameters

• Operation System: Embedded Linux Operation System
• Operation method: Physical Button
• Processor: Embedded MCU Processor

Camera Parameters

• Field of view: 180° (Horizontal), 96°(Vertical)

Audio Parameters

• Audio Input: Built-in Omnidirectional Microphone
• Audio Output: Built-in Loudspeaker(More than 85dB within 20 cm)
• Audio Compression Standard: G.711 U
• Audio Compression Rate: 64 Kbps
• Audio Quality: Noise Suppression and Echo Cancellation

Video Parameters

• WDR: Supported
• DNR: Supported
• BLC: Supported
• Video Compression Standard: H.264
• Resolution: Main Stream: 1920 × 1080 Sub Stream：720 × 480
• Anti-flicker frequency: 50 Hz, 60 Hz

Network Parameters

• Network Protocol: TCP/IP, RTSP
• Ethernet: 10/100 Mbps Self-Adaptive Ethernet

Light Supplement

• Light Supplement Mode: IR Supplement

Alarm Parameters

• Tampering alarm: 1

Device Interfaces

• Debug: 1
• Module-connecting: 1
• Relay Output: 2(30V, 1A)
• I/O Output: 4
• Button: 1

General

• Installation: Flush Mounting, Surface Mounting
• Power Supply: IEEE802.3af standard PoE, 12 VDC/1A
• Power Consumption: ≤10 W
• Working Humidity: 10% to 95%
• Working Temperature: -40° C to +60° C (-40° F to 140° F)
• IP Protection Level: IP65
• Dimensions(L × W × H): 98 mm × 99.8 mm × 43.9 mm (3.86" × 3.93" × 1.73")

DS-KH6320-WTE1

System Parameters

• Operation System: Embedded Linux Operation System
• Flash: 32MB
• Memory: 128MB

Display Parameters

• Display Screen: 7-Inch Colorful TFT LCD
• Display Resolution: 1024 × 600
• Operation Method: Capacitive touch screen

Audio Parameters

• Audio Input: Built-in Omnidirectional Microphone
• Audio Output: Built-in Loudspeaker
• Audio Compression Standard: G.711 U
• Audio Compression Rate: 64 Kbps
• Audio Quality: Noise Suppression and Echo Cancellation

Network Parameters

• Wired network: 10/100 Mbps self-adaptive network
• Wireless network: Wi-Fi 802.11b/g/n
• Network Protocol: TCP/IP, SIP, RTSP
• Network interface: 1 RJ-45 10/100 Mbps self-adaptive

Alarm Parameters

• Alarm Input: 8-ch Alarm Input Sensor

Device Interfaces

• Relay Output: 2
• RS-485: 1
• TF Card (micro SD card): Max to 32 G, SD 2.0 or lower version

General

• Power Supply: IEEE802.3af standard PoE, 12 VDC/1A
• Power Consumption: ≤6W
• Working Humidity: 10% to 90%
• Working Temperature: -10° C to + 55° C (14° F to 131° F)
• Dimensions(L × W × H): 200 mm × 140 mm × 15.1 mm (7.9" × 5.5" × 0.6")
